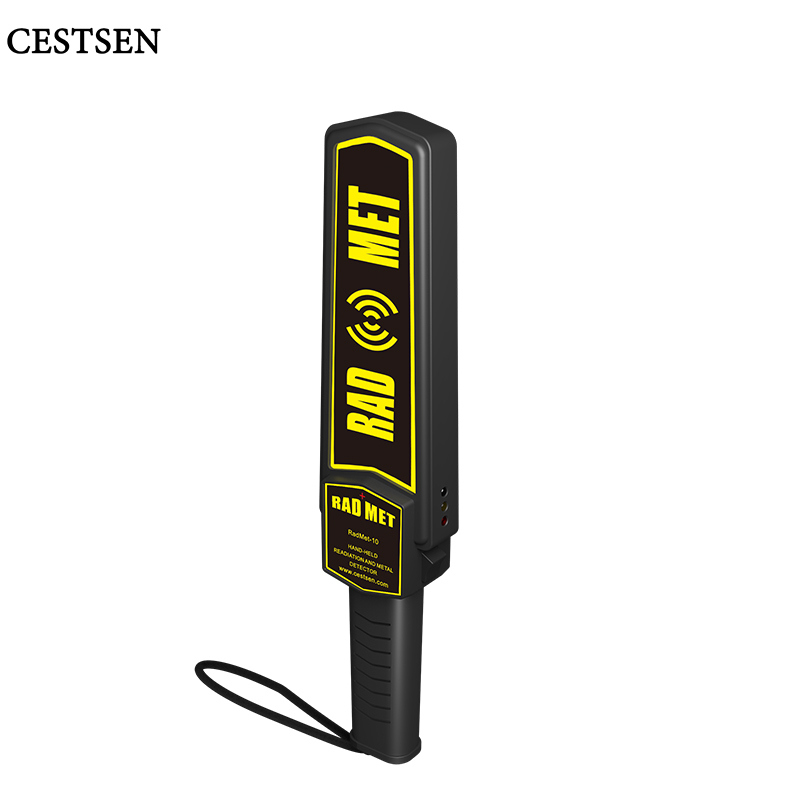

RadMet-10 Dual Radiation and Metal Detector

1,Product Introduction
RadMet-10 provides inspectors with a dual function detector that can quickly locate radioactive materials and metals. The device is compact and lightweight, allowing operators to quickly scan luggage and personnel without feeling fatigued. Even in the face of heavily shielded radiation materials, its sensitivity remains high.
RadMet-10 is equipped with a 2cc CsI (Tl) high-efficiency detector with SiPM readout system, which responds quickly to radiation. Combined with a sturdy and durable structural design, it can meet the needs of routine security checks and daily field use. The universal 9V battery ensures rapid deployment completion. When the device issues an alarm, the three color LED indicator light will inform the operator whether the cause is from metal or radiation, thereby achieving an immediate and clear response.

2, Main features
1. A single RadMet-10 can simultaneously detect radiation and metals with high sensitivity.
2. It can automatically calibrate for different backgrounds to ensure reliable response even when the environment changes.
3. Durable and lightweight structural design, suitable for daily repeated scanning use.
4. Equipped with sound and vibration alarm functions, as well as a three color LED indicator light that can distinguish between gamma alarm and metal alarm.
5. Detecting heavily shielded nuclear materials that may be missed through gamma ray screening alone.
6. Disposable dry battery, suitable for rapid deployment.

3, Application scenarios
Luggage and passenger security checks at airports and seaports.
Personal security checks for subways and enterprises
Customs and border checkpoints.
Safety access control for large-scale events and buildings.
Key infrastructure protection and perimeter security.
Hobbies and searches, etc

4, Principles of Radiation Detection
RadMet-10 uses a 2cc CsI (Tl) scintillator and is equipped with a SiPM reader. This component is used due to its strong light output and sturdy and compact packaging. SiPM keeps the detector compact and impact resistant, while retaining the responsiveness required to capture weak or shielded sources while walking. The gamma spectrum ranges from 50keV to 3 MeV.
RadMet-10 distinguishes between radiation alarm and metal alarm through three color LED lights: green indicates power on, yellow indicates gamma ray alarm, and red indicates metal alarm, so that the operator can immediately understand the cause of triggering the device. The automatic calibration function can adapt to local background radiation, which is crucial for inspectors moving between quiet checkpoints and densely populated passages.

5, RadMet-10 Technical Specifications
Tri color LED indicator: green LED=on (standby) yellow LED=continuous radiation alarm red LED=metal alarm
Gamma energy range: 17KeV to 3 MeV
Radiation detector type: 2cc CsI (Tl)+SiPM
Radiation alarm threshold: 1.5 μ Sv/h (threshold can be set before leaving the factory according to customer requirements)
Working temperature: -20 ℃ to 55 ℃
Size: 420 x 85 x 45 mm
Weight: 400 grams
Battery: One 9V battery (included)
Battery life: 500 hours
