| Brand Name: | ONETEST |
| Model Number: | ONETEST-500L |
| MOQ: | 1 |
| Delivery Time: | 5-10 Working day |
| Payment Terms: | T/T |

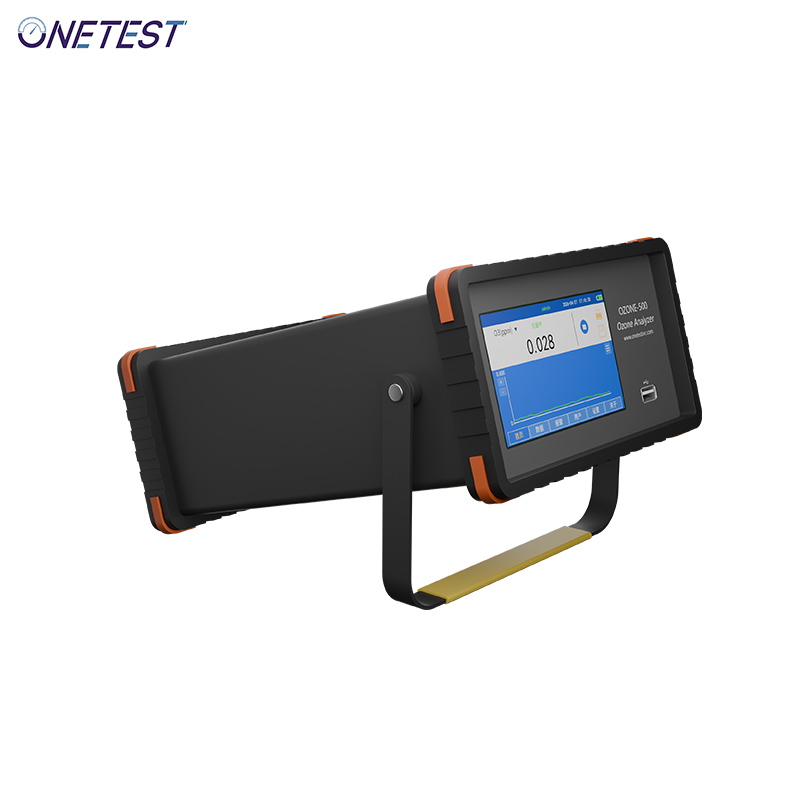

The OZONE-500 ozone concentration analyzer is based on the principle of 254 nm ultraviolet light absorption method and designed according to the Beer Lambert law. The instrument complies with the HJ590-2010 "Ozone Calibration - Ultraviolet Method" and GB/T37397-2019 "Ozone Calibration Analyzer" standards. The instrument adopts imported ultraviolet electronic light source, built-in sampling air pump, and is equipped with pressure and temperature compensation and display, real-time flow monitoring, automatic fault diagnosis and other functions. The integrated aluminum alloy body design, combined with a damping rubber handle and engineering protection box, makes it easy to carry.
Product features:
Adopting the standard 254nm ultraviolet absorption detection principle;
Portable, with ppb level detection accuracy;
30 second high-speed startup;
Dew Balance dehumidification technology;
Export data from USB flash drive in PDF, CSV, TXT formats;
Standard lithium battery, capable of continuous operation for 6 hours;
WiFi, USB and other signal outputs;
Bluetooth printer.
Technical indicators
| Technical Specification | Details |
|---|---|
| Measurement Range | 0-1 ppm, 0-100 ppm, 0-500 ppm |
| Accuracy | ±2% (FS) |
| Resolution | 0.001 ppm |
| Measurement Time | 3s |
| Signal Output | USB, WiFi, RS485, 0-10V, 4-20mA |
| Printing Method | External Bluetooth Printer |
| Warm-up Time | 30s |
| Data Storage Capacity | 1,000,000 sets |
| Operating Environment | Temp: 0-50℃, Humidity: 0-85% RH (Non-condensing) |
| Sampling Flow Rate | 1 L/min (Real-time flow monitoring) |
| Display | 5-inch Touchscreen |
| Light Source Lifespan | 15,000h |
| Power Supply | DC 16.8V / 3A |
| Dimensions (L×W×H) | 290 × 220 × 120 mm |
| Weight | 3.8 kg |
