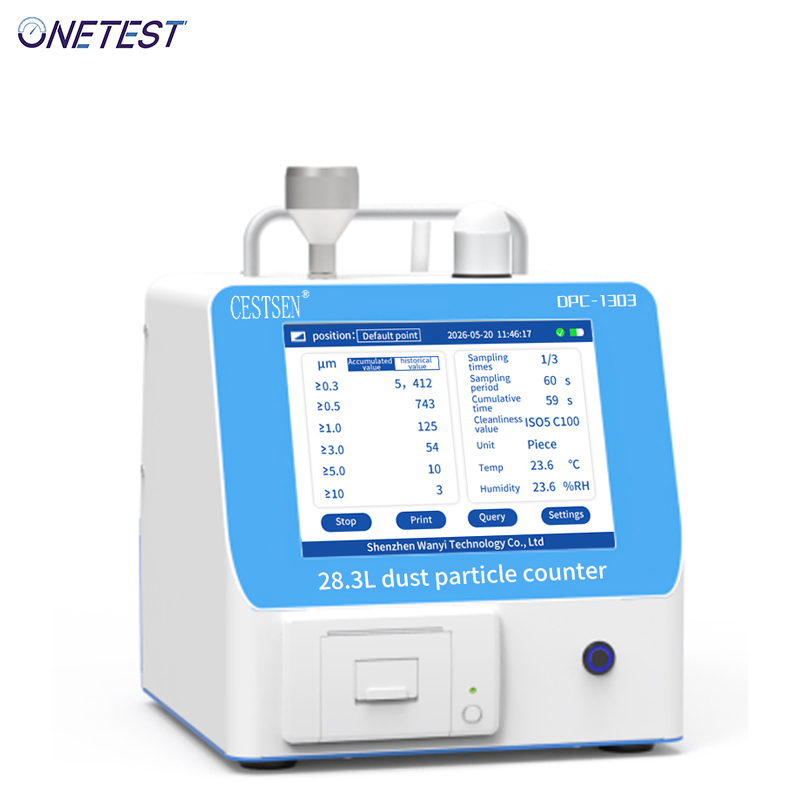

DPC1303 28.3L Dust Particle Counter | 6-Channel Laser | Cleanroom Monitor

Product Overview
    DPC1303 28.3L Dust Particle Counter is a multi-channel dust particle counter based on the principle of single-particle laser scattering. It can accurately detect 6 channels of particles with an industry-standard size of 0.3μm, 0.5μm, 1μm, 3μm, 5μm, and 10μm. It supports multiple communication interfaces, transmitting data to various smart terminals in real time, reducing human intervention and achieving unmanned intelligent monitoring. It is suitable for various occasions with cleanliness monitoring requirements.
    DPC1303 28.3L Dust Particle Counter is designed based on professional particle counter standards. It adopts industrial-grade lasers and large-aperture optical components, combined with Nova latest generation of light scattering particle signal processing technology, which has higher detection accuracy and particle size resolution. This allows it to be compared with a variety of professional standard equipment and meet data accuracy requirements.
    DPC1303 28.3L Dust Particle Counter features a high - negative-pressure constant-flow air source with built-in closed-loop feedback control and a high-efficiency filter at the outlet, effectively preventing pollution of the sampling environment. It comes standard with USB, RS485 , and Ethernet communication interfaces , along with a wealth of interactive functions, covering most usage scenarios. Its diverse functions and communication methods meet the needs of different customers.

Working principle
Employing the principle of single-particle laser scattering, a precise optical design and an air path designed according to fluid dynamics principles ensure that particles in the sampled air pass through the laser beam with a high probability, generating weak scattered light. A precise optical signal collection device gathers this scattered light and projects it onto a highly sensitive, high-bandwidth, large-area photodetector. By identifying and analyzing the scattering pulse of each particle, the signal intensity corresponding to each particle is obtained; through a calibration procedure, the particle size of each particle is determined; and after conversion and aerodynamic calibration, the number of particles is obtained.

Scope of application
DPC1303 28.3L Dust Particle Counter is widely applicable to cleanroom particle counting detection scenarios in industries such as semiconductors, pharmaceutical, electronics, food processing, and precision machining .

Features​
-Accurate data : Utilizing the principle of single-particle laser scattering and paired with an industrial-grade laser light source, it boasts excellent counting efficiency and outstanding repeatability and consistency of test results .
-Particle size range: The detection particle size range is 0.3 ~ 10 μm , a single device covers 6 particle size channels, and supports custom display of channels .
-High reliability: Supports self-testing of optical and air paths, aerodynamic correction, insensitive to vibration, and high system reliability and stability .
-Stable flow rate: Standard flow rate 28.3 L/min , using active sampling gas source , combined with PID flow closed-loop control , can support stable, long-term, high negative pressure sampling .
-High efficiency and self-cleaning: Built-in high-efficiency filter can effectively avoid contamination of the sampling environment .
-Second-level response: Data update rate reaches the second level, with timely and efficient response.
-Comprehensive functionality: Allows setting sampling points, sampling frequency, and sampling time to achieve periodic interval sampling.
-Easy- to-use interface: Equipped with an 8-inch color touchscreen, supporting both real-time and cumulative data modes, and flexibly converting data units [PC, PC/ft³, PC/m³].
-Convenient communication: Standard configuration includes multiple data acquisition and communication interfaces : USB, RS485, Ethernet .
-Local storage: Supports local storage, storing 7 million data entries, and can export files via Type-C interface .
-Built-in printer: Embedded high-speed thermal printer with customizable print content, supports manual / automatic printing, and real-time recording of counting results.
-Audible and visual alarm: Standard configuration includes an audible and visual alarm , with options for cleanliness level alarms or user- defined alarm values .
-Long battery life: Built-in high-capacity battery, with a battery life of up to 8 hours.
-Circuit safety: ESD, overvoltage, overcurrent, and reverse connection protection; no radiation source and no light pollution .

Technical indicators
